CreatBot PEEK-300

CreatBot PEEK-300 The Leader Of Ultra High Performance 3D Printer

  • Ultra high temp. nozzle/bed
  • Advanced Thermal System
  • Direct Annealing System
  • Water cooling/ Heat isolation system
  • Medical/Industry application

Technology

Material

Build Size

Extrusion

Nozzle

Nozzle Temp

Heat Chamber

Connectivity

: FDM

: 1.75 Filament

: 300x300x400mm

: Dual Extrusion

: 0.3-1.0 mm

: 500° C

: 120° C

: USB

Features

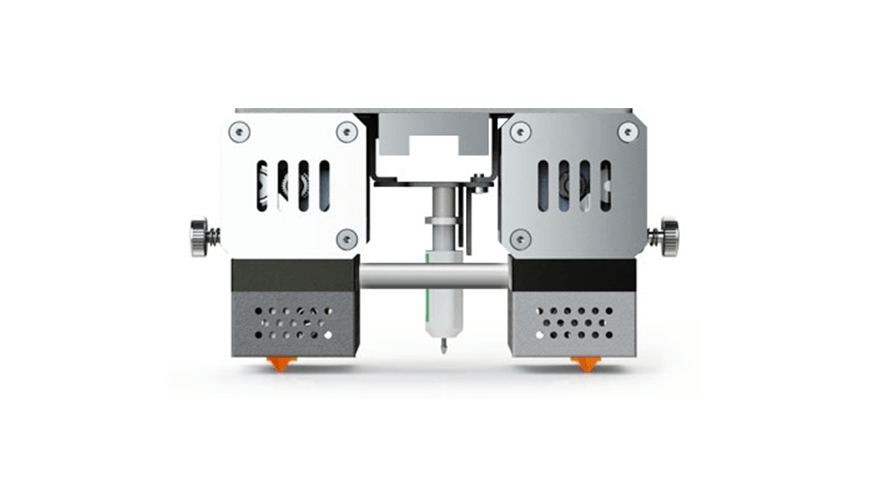

Dual hotend system for Creatbot PEEK-300 industrial 3d printer

Nozzle 500°C

Realiable and amazing.

The conqueror of all kinds of plastics.
heat plate hot hotbed icon

Hotbed 200 ℃

Common but necessary.

Base of printing big models with no warping.

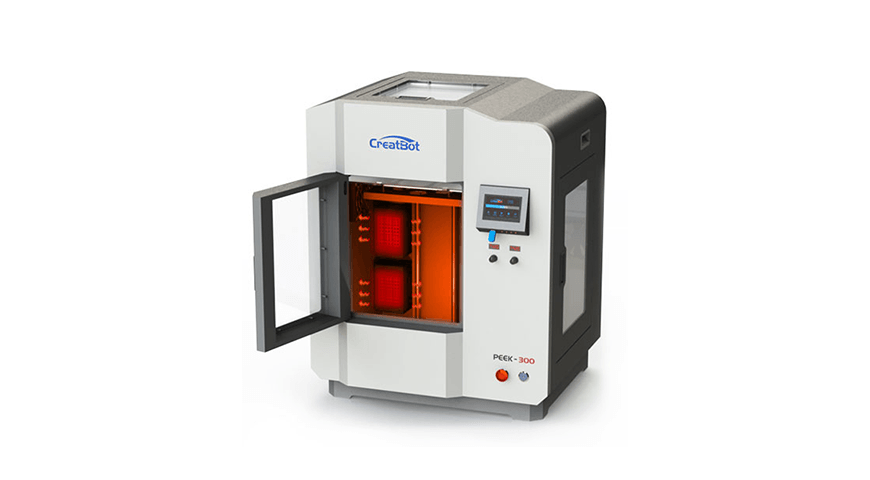

Creatbot Peek-300 printer with close chamber system

Hot Chamber 120°C

Important feature to protector part from cracking

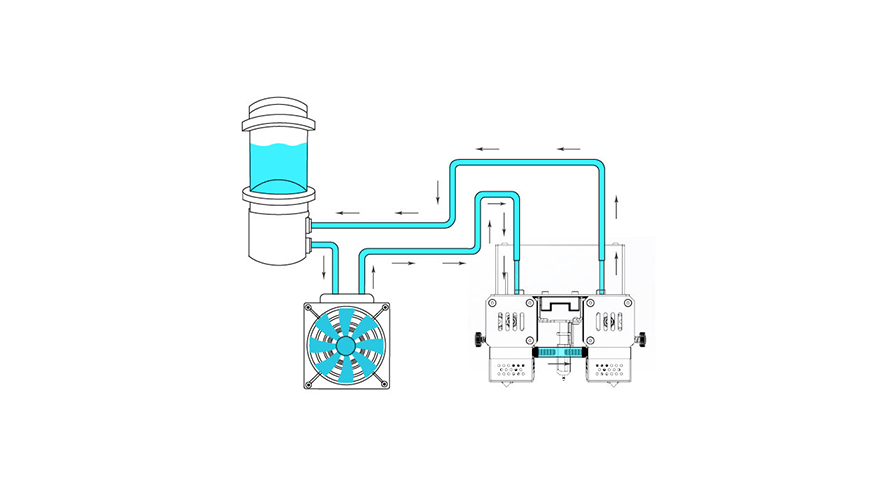

cooling system diagram show water channel go through hotend and nozzle

Cooling System

Cooling system is one of the important parts to constitute the whole thermal system.

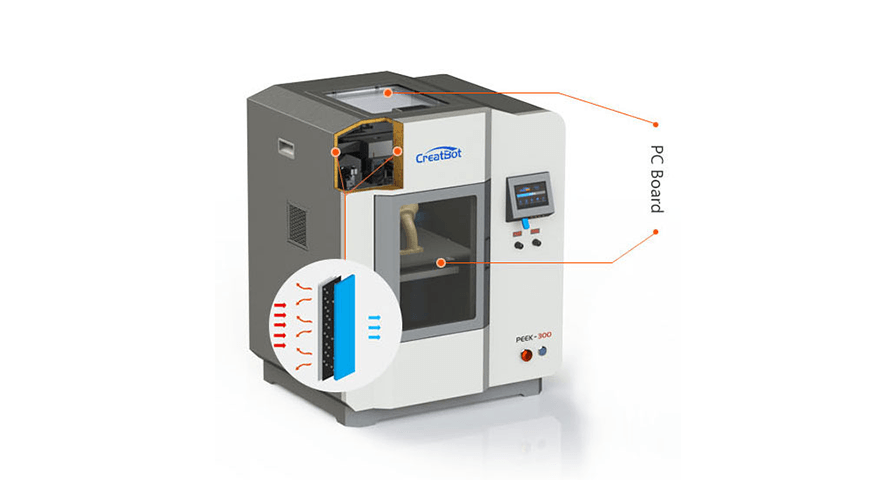

Creatbot PEEK-300 industrial 3d printer picture shows heat insulation system

Triple Heat Isolation

Triple heat isolation is made of double insulation chamber, advanced insulation materials and vacuum double PC boards. It is guarantee of ultra performance and safety.

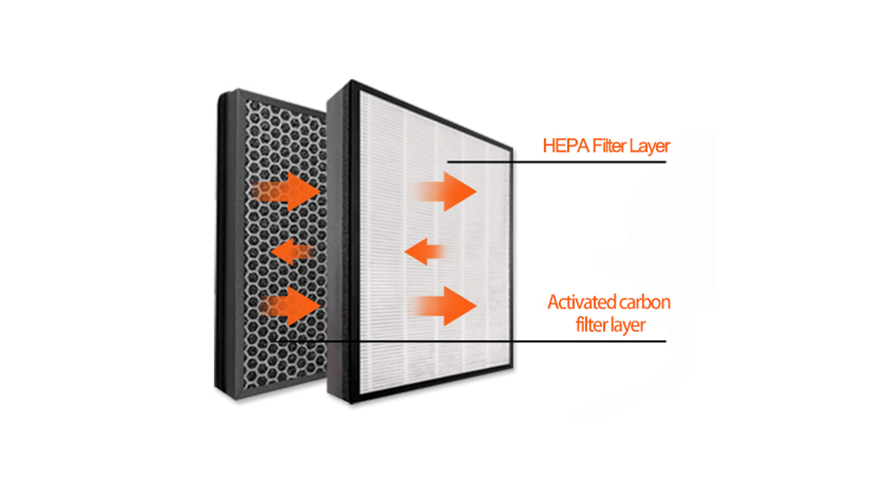

Air circulation through HEPA and carbon filter

HEPA Air Filtration

The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection which is more suitable for house, school, office space.

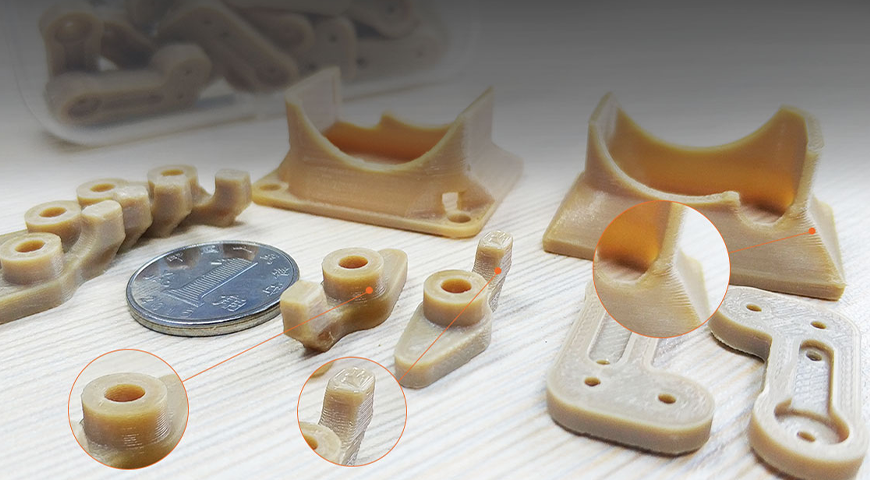

Multiple peek plastic sample display on the table

Resolution 0.04mm

0.04mm is an available resolution for normal plastics, but it is an extraordinary resolution for high warping and high deformation materials.

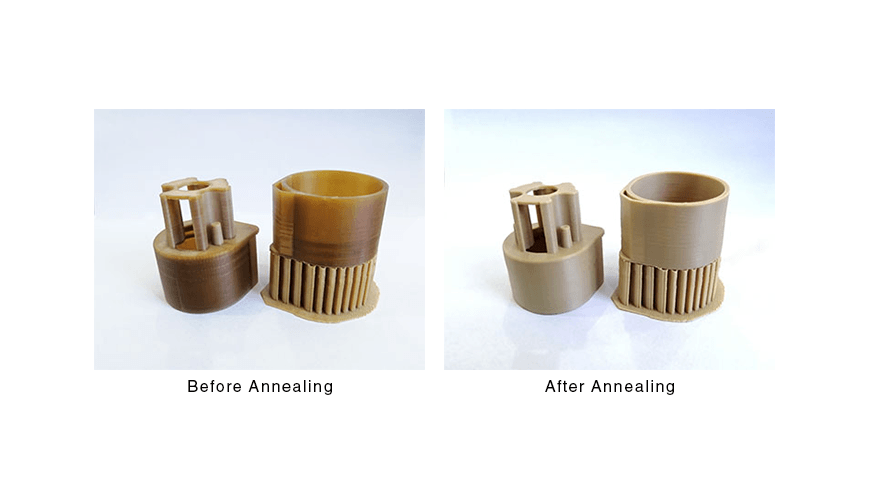

comparing peek material before and after annealing process

Direct Annealing Temperature: 0-400°C

The Direct Annealing System (DAS) is a revolutionary technology designed and patent protected by CreatBot. It's most advanced technology  to print high performance material.
