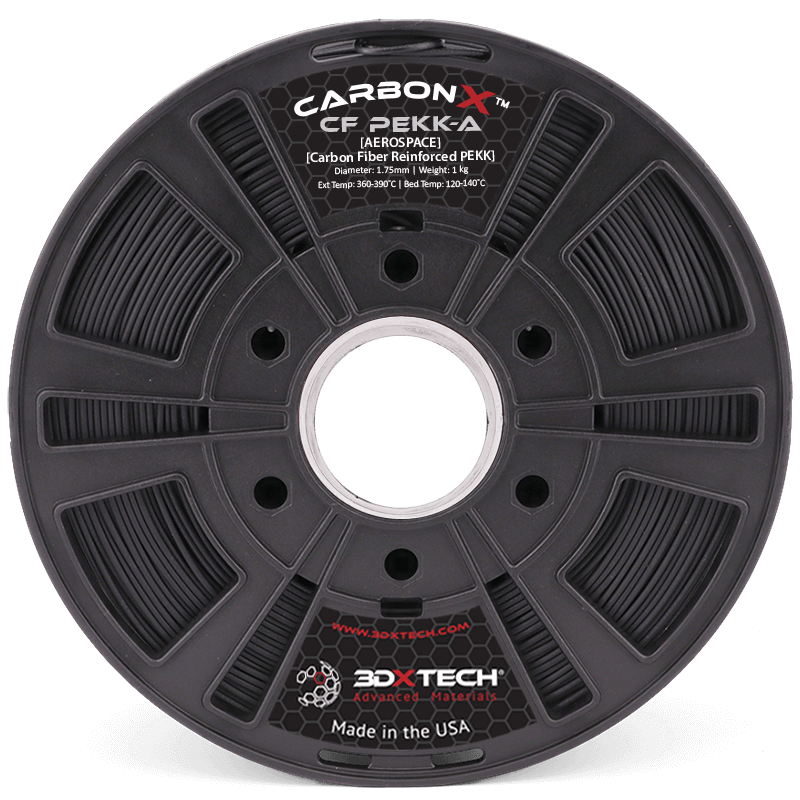

CarbonX™ CF PEKK-A [Aerospace] Printing Filament

CarbonX™ CF PEKK-A [Aerospace] Printing Filament

CarbonX™ Carbon Fiber PEKK-A (PolyEtherKetoneKetone) aerospace-grade performance is made possible using PEKK (60/40 copolymer) and Toray T-800 aerospace-grade chopped carbon fiber.  This combination makes for one of the highest-performance polymer compounds in world. A leading material in the PAEK family, PEKK has exceptionally good mechanical, thermal, and chemical resistance properties. It is also not only substantially easier to print than PEEK.

The premium Toray® Aerospace-Grade carbon fiber reinforcement makes this a compound purpose built for extreme applications which require extreme thermal, mechanical, and chemical resistance properties. CarbonX™ PEKK products have a lower melt temperature as well as lower rate and degree of crystallinity than PEEK, which aids in the remarkable ease of printing.

Benefits of CF PEKK-A [Aerospace] Includes:

• Substantially easier to 3D print than PEEK
• Wide processing window from 345-375°C
• Tg of 160°C, HDT of 150°C, and a Tm of 305°C
• Inherently flame resistant (UL94 V-0)
• Low smoke generation
• Outstanding mechanical, thermal, and chemical resistances
