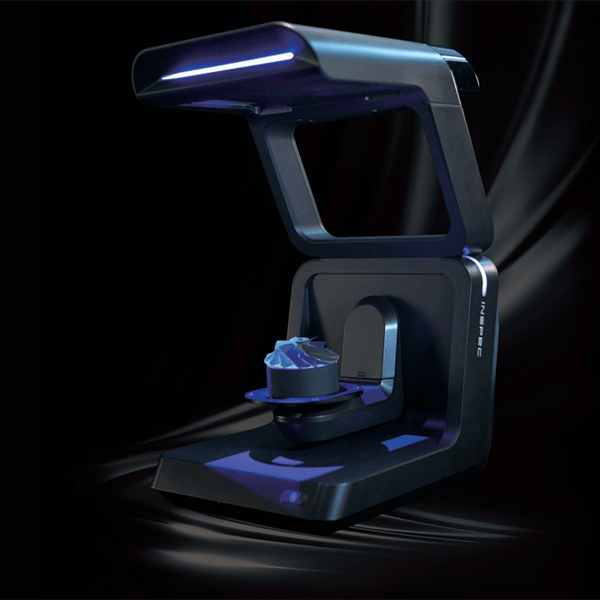

AutoScan Inspec
Automatic Desktop 3D Inspection Scanner
AutoScan Inspec is a fully automatic desktop 3D inspection scanner that innovative integrates high-accuracy 3D scanning and 3D inspection. Featuring intuitive user interface, easy operation and AI intelligent scanning algorithm,
AutoScan Inspec offers fully automatic scanning experience with metrology-grade accuracy and fine detail. Designed for scanning small and complex parts, AutoScan Inspec can be applied in inspection and quality control, reverse engineering, product design and etc.
Technology
Scan Mode
Scan Accuracy
Scan Range
Connectivity
Light Source
: LED
: Rotate 3 Axis
: ≤10μm
: 100x100x75mm
: Cable
: Blue Light
Feature
-
![]()

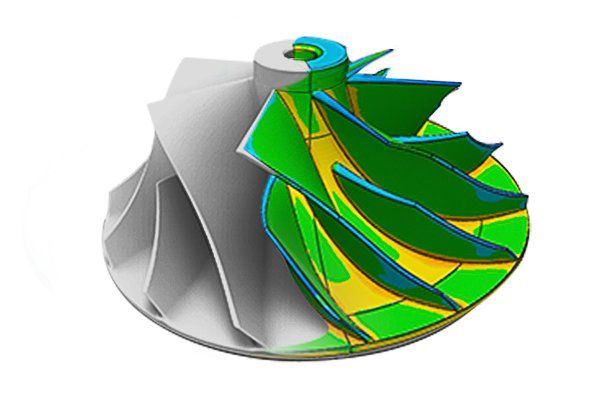

Metrology-grade Accuracy
ButtonAdvanced blue-light 3D scanning technology brings users the scan accuracy within 10μm to ensure high level of accuracy required by quality inspection.
-
![]()

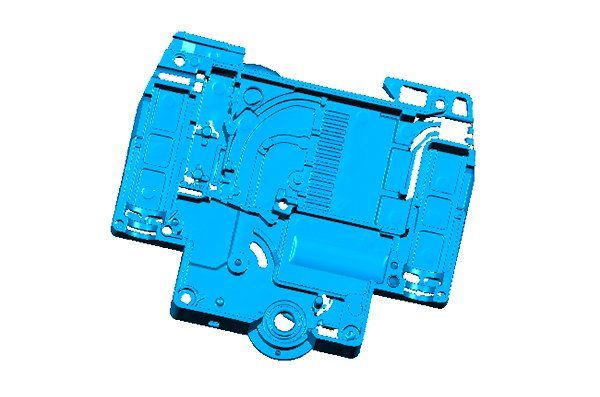

Fine Detail
ButtonProvides precisely detailed 3D scan for small and complex objects using dual-camera of 5 mega pixels.
-
![]()
Applications
Button- Non-Contact Measurement
- Inspection and Quality Control
- Reverse Engineering
- Product Design
-
![]()

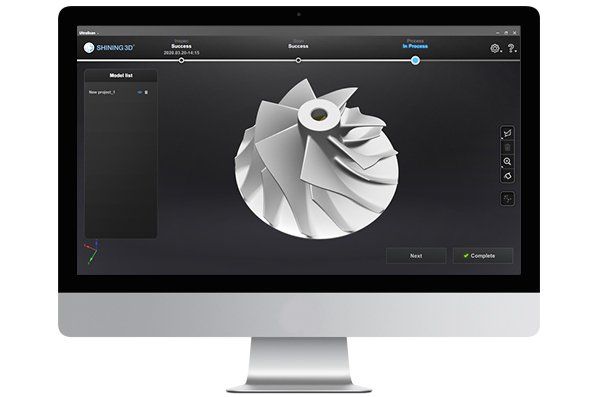

Powerful Software
ButtonThe software Ultrascan is specially created by SHINING 3D for industrial application, featuring user-friendly interface and easy operation, which allows user to effortlessly. Export 3D data to CAD/CAM system such as Geomagic Control X, Design X, Zbrush, Polyworks and etc.
-

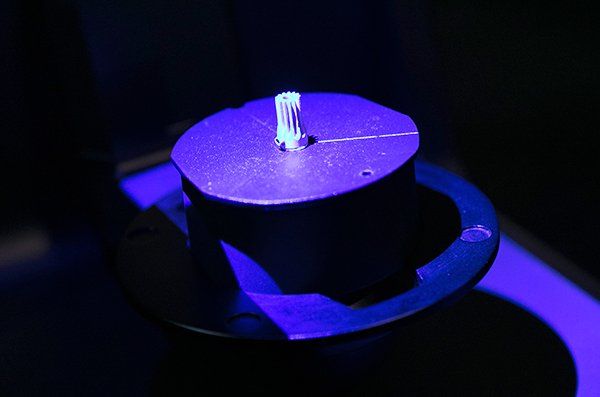

![Automatic 3d scanning small object by AutoScan Inspect]()
Automatic Scanning
ButtonAs a fully automated desktop 3D scanner for 1-click scan, AutoScan Inspec features 3-axis for multi-angle scanning, enabling users to obtain 3D scans easily and rapidly.
-
![]()
Fully Automatic Impeller Inspection
DemoScan the impeller in 3 minutes with AutoScan Inspec and inspected by Geomagic Control X.
